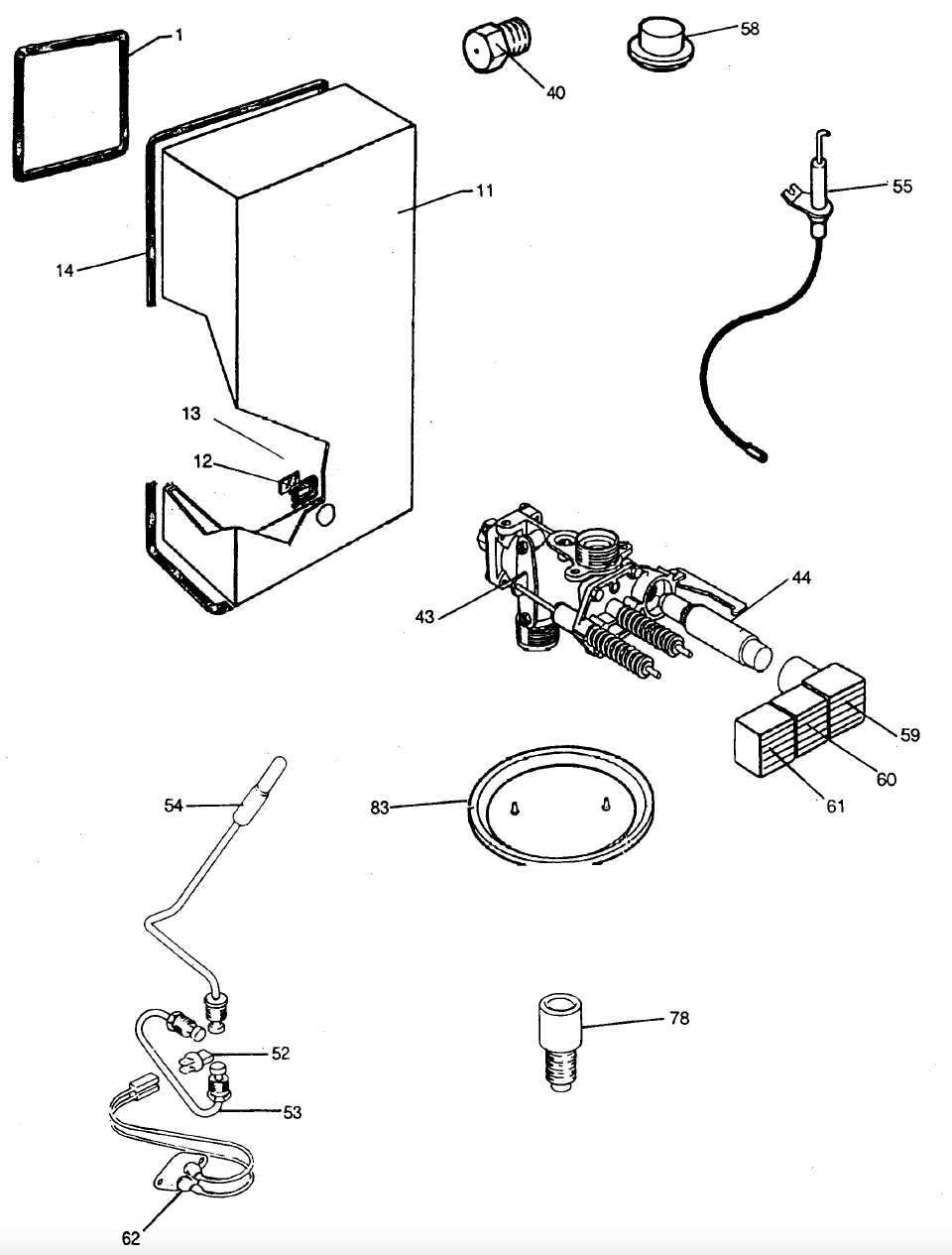

1 | 31 / 12299 / 284 957 | Seal Pack - Chassis to Flue Terminal | | |
11 | 10 / 17543 / 285 907 | Case Assembly | | |
14 | 10 / 17501 / 285 910 | Case Seal - Self Adhesive Rubber | | |
12 | 10 / 17499 / 285 908 | Viewing Aperture Seal | | |
13 | 10 / 17500 / 285 909 | Viewing Aperture Glass | | |
40 | 19 / 12196 / 285 513 | Injector N.G. 1.2mm | | |
43 | 10 / 13477 / 285 678 | Flame Safety Device Assembly | | |
54 | 10 / 17461 / 285 930 | Thermocouple-Special | | |
53 | 10 / 17790 / 285 929 | Thermocouple Connection - Special | | |
52 | 10 / 13846 / 397 688 | Interrupter Insert | | |
55 | 10 / 17493 / 285 931 | Electrode Assembly | | |
58 | 19 / 12690 / 285 679 | Pilot Injector- Special | | |
44 | 10 / 11935 / 393 492 | Piezo Unit- RV 1174 | | |
59 | 10 / 17507 / 285 934 | Igniter IGN Button | | |
60 | 10 / 17540 / 285 935 | Starter ON Button Assembly | | |
61 | 10 / 17541 / 285 936 | Stop OFF Button Assembly | | |
83 | 10 / 17534 / 285 944 | Diaphragm Assembly | | |
62 | 10 / 17792 / 285 937 | Energy Cut-Off Device Assembly - Includes Grommets | | |
78 | 10 / 17866 / 285 942 | Pressure Relief Valve Assembly | | |
